完整示例

流程 JSON

[
    {
        "id": "2cecfb40c68611ce",
        "type": "tab",
        "label": "流程 1",
        "disabled": false,
        "info": "",
        "env": []
    },
    {
        "id": "67cf29ef7dc34bcf",
        "type": "http in",
        "z": "2cecfb40c68611ce",
        "name": "接口定义",
        "url": "test_clouds_2025_01",
        "method": "get",
        "upload": false,
        "swaggerDoc": "",
        "advancedoptions": true,
        "apiAuth": "public",
        "x": 260,
        "y": 140,
        "wires": [
            [
                "14453828b7b9d3e8"
            ]
        ]
    },
    {
        "id": "14453828b7b9d3e8",
        "type": "http response",
        "z": "2cecfb40c68611ce",
        "name": "接口响应",
        "statusCode": "",
        "headers": {},
        "commonTemplate": true,
        "responseCode": 0,
        "responseCodeType": "num",
        "responseData": "{}",
        "responseDataType": "json",
        "responseMsg": "test_clouds_2025_01_res",
        "responseMsgType": "str",
        "x": 680,
        "y": 140,
        "wires": []
    },
    {
        "id": "18a1d1390a001458",
        "type": "http in",
        "z": "2cecfb40c68611ce",
        "name": "接口定义",
        "url": "test_clouds_2025_02",
        "method": "get",
        "upload": false,
        "swaggerDoc": "",
        "advancedoptions": true,
        "apiAuth": "public",
        "x": 260,
        "y": 280,
        "wires": [
            [
                "97484d062d4d0f61"
            ]
        ]
    },
    {
        "id": "97484d062d4d0f61",
        "type": "http response",
        "z": "2cecfb40c68611ce",
        "name": "接口响应",
        "statusCode": "",
        "headers": {},
        "commonTemplate": true,
        "responseCode": 0,
        "responseCodeType": "num",
        "responseData": "{}",
        "responseDataType": "json",
        "responseMsg": "test_clouds_2025_02_res",
        "responseMsgType": "str",
        "x": 680,
        "y": 280,
        "wires": []
    }
]

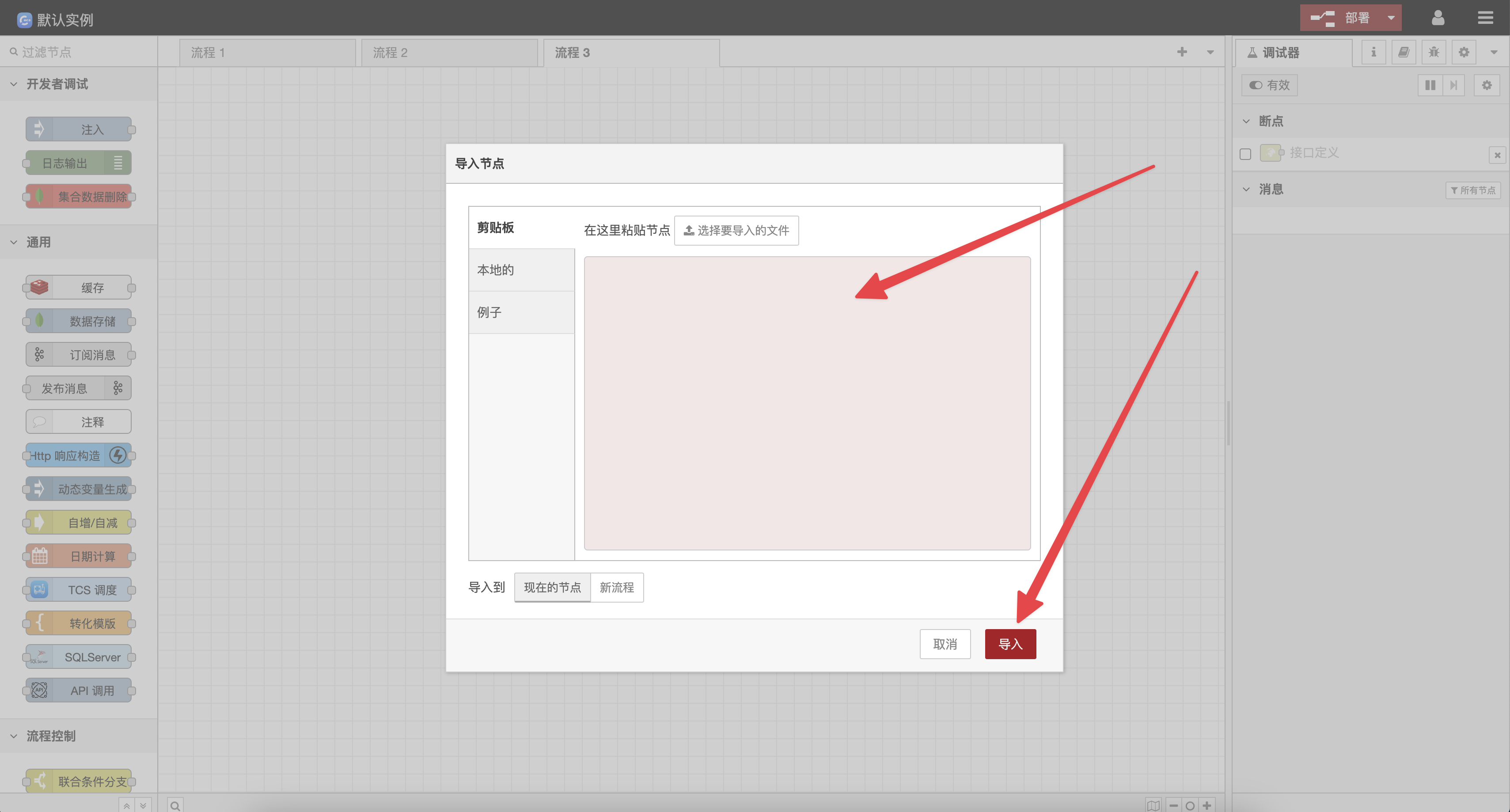

导入流程 JSON

将流程 JSON 复制粘贴并导入

点击部署

开启调试

调用接口

接口1

curl --location -k --request GET 'https://${host}:8301/noco-instance/default/public/test_clouds_2025_01'

{"code":0,"msg":"test_clouds_2025_01_res","data":"{}"}

接口2

curl --location -k --request GET 'https://${host}:8301/noco-instance/default/public/test_clouds_2025_02'

{"code":0,"msg":"test_clouds_2025_02_res","data":"{}"}

其中 host 为实际的魔方 IOT Gateway 地址，如生产环境内网为：172.16.0.3，143测试环境为：192.168.102.143
